CISH promoter polymorphism effects on T cell cytokine receptor signaling and type 1 diabetes susceptibility
Molecular and Cellular Pediatrics volume 5, Article number: 2 (2018)
Impaired regulatory T cell immunity plays a central role in the development of type 1 diabetes (T1D). Interleukin-2 receptor (IL-2R) signaling is essential for regulatory T cells (TREG), and cytokine-inducible SH2-containing protein (CIS) regulates IL-2R signaling as a feedback inhibitor. Previous studies identified association of CISH promoter region single nucleotide polymorphisms (SNPs) with susceptibility to infectious diseases.
Here we analyzed allele frequencies of three CISH SNPs (i.e., rs809451, rs414171, rs2239751) in a study of T1D patients (n = 260, onset age < 5 years, duration > 10 years). Minor allele frequencies were compared to a control cohort of the 1000 Genomes Project. Assigned haplotypes were determined for effects on T1D manifestation and severity. Finally, the CISH haplotype influence on cytokine signaling and function was explored in T cells from healthy donors.
We detected similar minor allele frequencies between T1D patients and the control cohort. T1D onset age, residual serum C-peptide level, and insulin requirement were comparable between different haplotypes. Only minor differences between the haplotypes were found for in vitro cytokine (i.e., IL-2, IL-7)-induced CIS mRNA expression. STAT5 phosphorylation was induced by IL-2 or IL-7, but no differences were found between the haplotypes. TREG purified from healthy donors with the two most common haplotypes showed similar capacity to inhibit heterologous effector T cells.
This study provides no evidence for an association of CISH promoter SNPs with susceptibility to T1D or severity of disease. In contrast to previous studies, no influence of different haplotypes on CIS mRNA expression or T cell-mediated functions was found.
Type 1 diabetes (T1D) is a chronic autoimmune disease characterized by the destruction of pancreatic ß cells. Autoreactive effector T cells are involved in T1D pathogenesis, and impaired regulatory T cell (TREG) functions promote self-reactive effector T cells [1, 2]. TREG crucially depend on IL-2, and IL-2 receptor (IL-2R) variants are associated with increased susceptibility to T1D . T1D-associated IL-2R variants affect TREG phenotype and function . Therefore, decreased IL-2R signaling is assumed to be central for impaired TREG function in T1D pathogenesis . IL-2R expression and signaling of T cells are tightly regulated, and cytokine-inducible SH2-containing protein (CIS), a member of the suppressor of cytokine signaling (SOCS) family, contributes as a feedback inhibitor . The CIS protein (encoded by the CISH gene) plays a role in T cell activation and cytokine-induced proliferation . Several cytokines (including IL-2 and IL-7) induce CIS expression during receptor binding mediated by the Jak/STAT pathway . CIS expression is induced within few hours and inhibits IL-2R signaling by binding of the IL-2Rβ chain and blocking of STAT5 phosphorylation [9, 10].
Previous studies demonstrated important roles of CIS on T cell function during allergic, malignant, and infectious diseases [11,12,13]. These studies showed that CIS regulated T cell activation and polarization of CD4+ and CD8+ T cells [12, 13]. Furthermore, genetic CISH variants were found to be associated with susceptibility to infectious diseases including tuberculosis [11, 14, 15]. Tuberculosis-associated single nucleotide polymorphisms (SNPs) (i.e., rs809451, rs414171, rs2239751) are located in CISH promoter regions and were accompanied with differential CIS expression [11, 16]. Tuberculosis risk allele (i.e., rs414171T/rs809451C) carriers had decreased CIS mRNA expression after IL-2 in vitro stimulation and increased IL-10 serum levels . This suggested increased TREG function of tuberculosis risk allele carriers due to decreased CIS expression .
In the present study, we addressed the question if CISH SNPs are associated with susceptibility to develop T1D and/or with age at onset and disease severity. We determined minor allele frequencies (MAFs) of three CISH SNPs in patients with early-onset and long-term T1D and compared results with controls from the 1000 Genomes database (www.internationalgenome.org) . In addition, we characterized the effects of CISH SNPs on cytokine-induced T cell functions.
Patients and healthy controls
Two hundred sixty patients with T1D (mean age 16.4 years, range 10.7–20.9 years; onset age < 5 years, > 10 years diabetes duration) were recruited for the pediatric diabetes biobank within the German Center for Diabetes Research (DZD). Further information on selection and characteristics of the study cohort has been given previously . Healthy adult donors were recruited from the staff working at the University Hospital Duesseldorf (n = 14).
Genotyping of CISH SNPs
DNA was isolated from peripheral blood using QIAamp DNA Mini Kit (Qiagen). TaqMan assays (Applied Biosystems) were used for genotyping of three CISH SNPs (i.e., rs809451, rs414171, rs2239751). CISH SNP inheritance was analyzed, and linkage disequilibrium was estimated using a publically available tool (https://analysistools.nci.nih.gov/LDlink). The structure of the CISH gene region and SNP linkage are depicted in Fig. 1a. Minor allele frequencies (MAFs) were calculated and compared with the European (EUR) cohort from the 1000 Genomes Project . CISH SNP variants were assigned to three haplotypes based on previous reports [14, 16]. Because of the predefined number of available biobank samples, we performed post hoc power calculations and included confidence intervals for MAF differences (according to ) (Additional file 1: Figure S1 and Table 1).
Parameters of T1D severity
Residual random serum C-peptide levels and daily insulin requirement were used as proxies for disease severity. C-peptide was measured with a high-sensitivity assay ; data on insulin requirement were retrospectively obtained from the German/Austrian nationwide DPV registry .
In vitro T cell assays
For quantification of cytokine-induced CIS mRNA expression and STAT5 phosphorylation, peripheral blood mononuclear cells (PBMCs) from healthy donors genotyped for CISH SNPs rs809451, rs414171, and rs2239751 were isolated and stored in liquid nitrogen. Samples were then concomitantly thawed for in vitro assays. For measurement of CIS mRNA expression, PBMCs were stimulated with IL-2 (100 IU/ml, Sigma-Aldrich) or IL-7 (10 ng/ml, Sigma-Aldrich) for 1 or 2 h. mRNA was then isolated and reverse transcribed. CIS mRNA was quantified by real-time quantitative (q)PCR as described previously . A non-stimulated PBMC sample was used to determine ex vivo CIS expression in PBMC. GAPDH was used as a qPCR house-keeping control .
For STAT5 phosphorylation, PBMCs were stimulated with IL-2 (10 IU/ml) or IL-7 (1 ng/ml) for 15 min and simultaneously stained with a monoclonal antibody against CD4-PacificBlue (OKT4, BioLegend). PBMCs were immediately fixed thereafter using fixation/permeabilization buffer (True-Nuclear-kit, BioLegend) according to manufacturer’s instructions. Samples were then stained with a monoclonal antibody against pSTAT5-PE (SRBCZX, eBioScience) and measured by flow cytometry (LSRFortessa, BD). Analyses were done using FlowJo software (Miltenyi Biotech). Representative depictions of flow cytometry data are provided as part of Fig. 3b.
For the regulatory T cell assay, freshly isolated PBMC from healthy donors genotyped for CISH SNPs were enriched for TREG using the CD4+CD25+CD127dim/− Regulatory T Cell Isolation Kit II and by magnetic cell sorting (MACS) (both BD Biosciences) according to the manufacturer’s instructions. The purity of enriched TREG cells was determined by flow cytometry using the following antibodies: CD4-PacificBlue (OKT4, BioLegend), CD127-A647 (HIL-7R-M21, BD Biosciences), CD25-PeCy7 (2A3, BD Biosciences). Only samples containing more than 95% enriched TREG cells were included. Heterozygous CD3+ T cells (termed “effector T cells” (TEFF) throughout) were enriched using the non-contact T Lymphocyte Enrichment Kit and MACS technology (both BD Biosciences). A purity of more than 95% was confirmed by flow cytometry using monoclonal antibodies for CD3-APC (UCHT1, BD Biosciences). TEFF were labeled with carboxyfluorescein succinimidyl ester (CFSE) proliferation dye (eFluor™ 450, Thermo Fisher) following the manufacturer’s instructions. TEFF (1 × 105) alone or in co-culture with different concentrations of TREG (i.e., 2.5 × 104, 5 × 104, 1 × 105) were then stimulated with CD3/CD28 beads (1 μl, Gibco) for 4 days in RPMI medium containing 10% human AB serum and 1% penicillin/streptomycin. CFSE dilution indicating cellular division of effector T cells was measured by flow cytometry (LSRFortessa, BD). Analyses were performed using FlowJo software (Miltenyi Biotech). Representative flow cytometry histograms are provided in Fig. 4a.
MAFs for CISH SNPs were calculated according to standard methods and compared to the European (EUR) cohort from the 1000 Genomes Project  using Fisher’s exact test; 95% confidence intervals (CI) were calculated with the Newcombe method. The Mann-Whitney U test was applied to compare disease characteristics (i.e., onset age, C-peptide level, insulin dose) between haplotypes. Further, the Friedman test was used to evaluate the effect of IL-2 and IL-7 stimulation on CIS mRNA expression and pSTAT5 induction between haplotypes as well as for the effect of different TREG/TEFF ratios on TEFF proliferation. Two-tailed p values below 0.05 were considered statistically significant. All analyses and figure preparations were performed with GraphPad Prism (Version 7.0a. GraphPad Software) and SAS for Windows version 9.4 (SAS Institute, Cary, North Carolina, USA).
In a cohort of 260 T1D patients from the pediatric diabetes biobank (German Center for Diabetes Research, DZD), three CISH promoter SNPs (i.e., rs809451, rs414171, rs2239751) were analyzed. We found comparable MAFs for rs809451 (11.3%) and rs414171 (12.1%) (Table 1). This similarity was due to a strong linkage disequilibrium between these SNPs (R2 = 0.92), whereas inheritance of the rs2239751 SNP was largely independent from rs414171 (R2 = 0.06) and rs809451 (R2 = 0.002) (Fig. 1a). The rs2239751 MAF was low (0.8%) and homozygous carriers were not found (Table 1). Next, we compared MAFs of T1D patients with data from a European cohort genotyped as part of the 1000 Genomes Project (n = 503) (Table 1). We detected similar MAFs and no significant differences between both cohorts (Table 1).

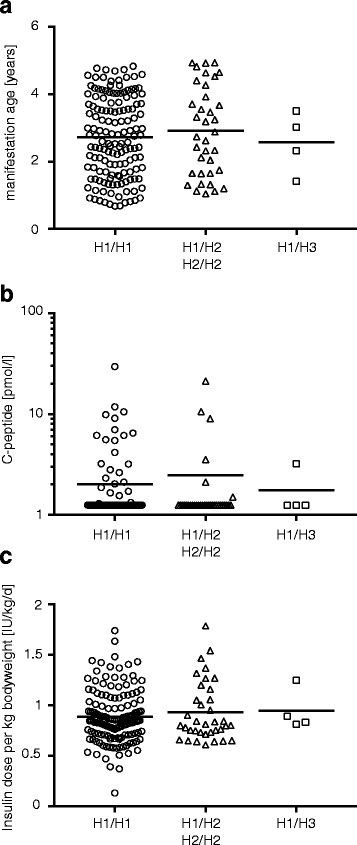

Characterization of SNPs rs809451, rs414171, and rs2239751 led to the assignment of three haplotypes (H1, H2, H3, Fig. 1b). The vast majority of T1D patients had the homozygous genotype H1/H1 (n = 199) whereas a lower proportion was heterozygous for H1 and H2 (H1/H2, n = 55). Hardly any T1D patients with homozygous H2 (H2/H2, n = 2) or H3 (heterozygous H1/H3; n = 4) genotypes were identified (Fig. 2). To investigate a possible influence of haplotypes on T1D disease manifestation and severity, we compared T1D onset age, serum C-peptide levels, and insulin requirement between T1D patients with different haplotypes (Fig. 2). No differences in age at manifestation (Fig. 2a), C-peptide levels (Fig. 2b), or daily insulin requirement (Fig. 2c) were found. These results did not suggest an association of CISH promoter SNPs with manifestation age or severity of T1D.

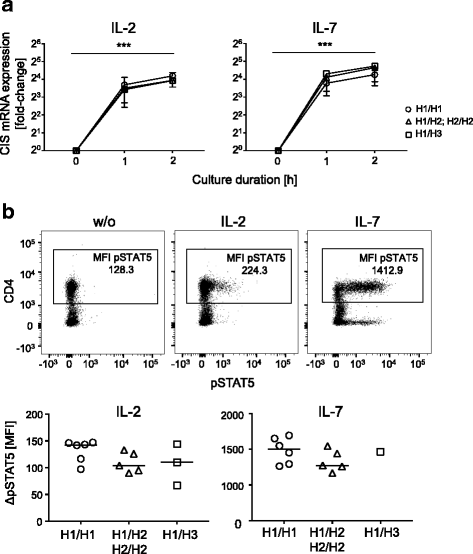

Previous studies described impaired IL-2 induced CIS expression of T cells with H2 [11, 16]. We applied IL-2 and IL-7 in vitro T cell stimulation for comparison of samples from healthy individuals assigned to the three genotypes (i.e., homozygous H1/H1, H2 carrier (H1/H2 and H2/H2), and H3 carrier (H1/H3); Fig. 3). Because of the low frequency of homozygous H2 carriers, only one homozygous H2 donor was included. In vitro stimulation with IL-2 or IL-7 for 1 and 2 h induced an increase of CIS mRNA expression (both p < 0.001, Fig. 3a). We detected no differences between the three genotypes 1 or 2 h after stimulation.
To determine functional effects of CISH haplotypes on cytokine receptor signaling, we measured IL-2 and IL-7 induced STAT5 phosphorylation for the same study groups (Fig. 3b). Both IL-2 and IL-7 increased pSTAT5 (all p < 0.001) without perceptible differences between the three genotypes (Fig. 3b).
Finally, we compared TREG from the two dominant genotypes H1/H1 and H1/H2 for their in vitro ability to limit TEFF proliferation. Different proportions of TREG were co-cultured with allogenic effector T cells, and effector cell proliferation was measured after 5 days (Fig. 4a). A significant reduction of TEFF proliferation was detected when TREG were added and the effects increased with higher TREG proportions (p = 0.005, Fig. 4b). However, comparable TREG effects were found for samples from H1/H1 and H1/H2 carriers. We concluded that no association of CISH SNPs with susceptibility to T1D was detectable and that haplotypes had no influence on IL-2/IL-7 signaling or TREG functions.
This study showed that CISH promoter SNP rs809451, rs414171, and rs2239751 frequencies were comparable between patients with early onset of T1D and controls from the publically available 1000 Genomes database. Therefore, no evidence for an association of CISH promoter variants and susceptibility to develop T1D was detected. Available cohort sizes restricted the sensitivity of this study and moderate effects of CISH SNPs cannot be excluded. In addition, the 1000 Genomes Project cohort comprised individuals from different European regions and, therefore, effects due to ethnic differences between study groups are possible .
We detected no differences in T1D manifestation age between different haplotypes. However, all T1D patients included in the present study had an early onset of T1D below 5 years of age and this preselection limited differences in onset age between haplotypes. Differences in disease course are indicated by residual ß-cell activity—measured by residual C-peptide levels—and daily insulin requirements of T1D patients. We detected no differences between the haplotypes for these parameters. Thus, these results do not suggest haplotype-dependent effects on autoimmune mechanisms and disease course in T1D patients.
Previous studies suggested a role of CISH promoter SNPs on CIS mRNA expression [11, 16]. Whereas Khor et al. detected CIS mRNA expression differences only for the homozygous minor allele carriers (H2/H2 according to the nomenclature used here) , Sun et al. also detected decreased CIS mRNA for heterozygous (H1/H2) patients carrying the rs809451 minor allele . Only one H2/H2 carrier was found among healthy individuals recruited and, therefore, we were not able to reproduce the results for the homozygous H2 genotype. In contrast to Sun et al. , we detected no differences in CIS mRNA for H1/H2 carriers as compared to H1/H1 carriers. In addition, we did not detect H1/H2 effects on IL-2 induced STAT5 phosphorylation. Differences between rs809451 and rs414171 minor allele carriers described  could not be reproduced in the present study because of the strong linkage disequilibrium between these SNPs.
In addition, the study by Sun et al. found differences in IL-10 serum levels of rs414171 minor allele carriers . These finding suggested functional effects of CISH haplotypes on TREG, the main producers of IL-10 . Our functional TREG analyses of H1/H1 and H1/H2 carriers did not indicate differences in their ability to limit TEFF proliferation. Since other immune cell populations (e.g., follicular T helper cells) produce IL-10 , described differences in IL-10 serum levels may be explained by non-TREG-mediated mechanisms.
Our results do not suggest a role of CISH SNPs in the susceptibility to T1D, whereas other reports showed an association with susceptibility to infectious diseases . CIS is involved in the regulation of several cytokines including IL-7, which is crucial for naïve and memory T cell homeostasis and may promote autoreactive T cell responses in T1D . Therefore, a possible role of CIS in T1D may be more complex and not based on impaired cytokine-induced CIS expression of different haplotypes. In accordance, multiple roles of CIS in different immune cell populations have been described [12, 13, 24]. Further analyses are needed to address this question.
This study provides no evidence for an association of CISH promoter SNPs with susceptibility to T1D or severity of the disease. In contrast to previous studies that demonstrated marked effects of CISH SNPs on T cells, no influence of different haplotypes on CIS mRNA expression or T cell-mediated functions was found. Further studies are needed to address the question, how CISH variants mechanistically carry out their role during allergic, malignant, and infectious diseases.
Cytokine-inducible SH2-containing protein
Minor allele frequencies
Peripheral blood mononuclear cells
Single nucleotide polymorphism
Type 1 diabetes
- TEFF :
Effector T cells
- TREG :
Regulatory T cells
Brusko TM, Wasserfall CH, Clare-Salzler MJ, Schatz DA, Atkinson MA (2005) Functional defects and the influence of age on the frequency of CD4+ CD25+ T-cells in type 1 diabetes. Diabetes 54(5):1407–1414 PubMed PMID: 15855327
Lindley S, Dayan CM, Bishop A, Roep BO, Peakman M, Tree TI (2005) Defective suppressor function in CD4(+)CD25(+) T-cells from patients with type 1 diabetes. Diabetes 54(1):92–99 PubMed PMID: 15616015
Lowe CE, Cooper JD, Brusko T, Walker NM, Smyth DJ, Bailey R et al (2007) Large-scale genetic fine mapping and genotype-phenotype associations implicate polymorphism in the IL2RA region in type 1 diabetes. Nat Genet 39(9):1074–1082. https://doi.org/10.1038/ng2102 PubMed PMID: 17676041
Dendrou CA, Plagnol V, Fung E, Yang JH, Downes K, Cooper JD et al (2009) Cell-specific protein phenotypes for the autoimmune locus IL2RA using a genotype-selectable human bioresource. Nat Genet 41(9):1011–1015. https://doi.org/10.1038/ng.434 PubMed PMID: 19701192; PubMed Central PMCID: PMCPMC2749506
Chistiakov DA, Voronova NV, Chistiakov PA (2008) The crucial role of IL-2/IL-2RA-mediated immune regulation in the pathogenesis of type 1 diabetes, an evidence coming from genetic and animal model studies. Immunol Lett 118(1):1–5. https://doi.org/10.1016/j.imlet.2008.03.002 PubMed PMID: 18417224
Ilangumaran S, Ramanathan S, Rottapel R (2004) Regulation of the immune system by SOCS family adaptor proteins. Semin Immunol 16(6):351–365. https://doi.org/10.1016/j.smim.2004.08.015 PubMed PMID: 15541651
Li S, Chen S, Xu X, Sundstedt A, Paulsson KM, Anderson P et al (2000) Cytokine-induced Src homology 2 protein (CIS) promotes T cell receptor-mediated proliferation and prolongs survival of activated T cells. J Exp Med 191(6):985–994 Epub 2000/03/23. PubMed PMID: 10727460; PubMed Central PMCID: PMC2193118
Matsumoto A, Masuhara M, Mitsui K, Yokouchi M, Ohtsubo M, Misawa H et al (1997) CIS, a cytokine inducible SH2 protein, is a target of the JAK-STAT5 pathway and modulates STAT5 activation. Blood 89(9):3148–3154 PubMed PMID: 9129017
Aman MJ, Migone TS, Sasaki A, Ascherman DP, Zhu M, Soldaini E et al (1999) CIS associates with the interleukin-2 receptor beta chain and inhibits interleukin-2-dependent signaling. J Biol Chem 274(42):30266–30272 Epub 1999/10/09. PubMed PMID: 10514520
Matsumoto A, Seki Y, Kubo M, Ohtsuka S, Suzuki A, Hayashi I et al (1999) Suppression of STAT5 functions in liver, mammary glands, and T cells in cytokine-inducible SH2-containing protein 1 transgenic mice. Mol Cell Biol 19(9):6396–6407 Epub 1999/08/24. PubMed PMID: 10454585; PubMed Central PMCID: PMC84609
Khor CC, Vannberg FO, Chapman SJ, Guo H, Wong SH, Walley AJ et al (2010) CISH and susceptibility to infectious diseases. N Engl J Med 362(22):2092–2101. https://doi.org/10.1056/NEJMoa0905606 Epub 2010/05/21. PubMed PMID: 20484391; PubMed Central PMCID: PMC3646238
Palmer DC, Guittard GC, Franco Z, Crompton JG, Eil RL, Patel SJ et al (2015) CISH actively silences TCR signaling in CD8+ T cells to maintain tumor tolerance. J Exp Med 212(12):2095–2113. https://doi.org/10.1084/jem.20150304 PubMed PMID: 26527801; PubMed Central PMCID: PMCPMC4647263
Yang XO, Zhang H, Kim BS, Niu X, Peng J, Chen Y et al (2013) The signaling suppressor CIS controls proallergic T cell development and allergic airway inflammation. Nat Immunol 14(7):732–740. https://doi.org/10.1038/ni.2633 Epub 2013/06/04. PubMed PMID: 23727894
Zhao L, Chu H, Xu X, Yue J, Li H, Wang M (2013) Association between single-nucleotide polymorphism in CISH gene and susceptibility to tuberculosis in Chinese Han population. Cell Biochem Biophys. https://doi.org/10.1007/s12013-013-9733-2 Epub 2013/08/21. PubMed PMID: 23949851
Ji LD, Xu WN, Chai PF, Zheng W, Qian HX, Xu J (2014) Polymorphisms in the CISH gene are associated with susceptibility to tuberculosis in the Chinese Han population. Infect Genet Evol 28:240–244. https://doi.org/10.1016/j.meegid.2014.10.006 PubMed PMID: 25460819
Sun L, Jin YQ, Shen C, Qi H, Chu P, Yin QQ et al (2014) Genetic contribution of CISH promoter polymorphisms to susceptibility to tuberculosis in Chinese children. PLoS One 9(3):e92020. https://doi.org/10.1371/journal.pone.0092020 PubMed PMID: 24632804; PubMed Central PMCID: PMCPMC3954833
Genomes Project C, Abecasis GR, Altshuler D, Auton A, Brooks LD, Durbin RM et al (2010) A map of human genome variation from population-scale sequencing. Nature 467(7319):1061–1073. https://doi.org/10.1038/nature09534 PubMed PMID: 20981092; PubMed Central PMCID: PMCPMC3042601
Reinauer C, Rosenbauer J, Bachle C, Herder C, Roden M, Ellard S et al (2017) The clinical course of patients with preschool manifestation of type 1 diabetes is independent of the HLA DR-DQ genotype. Genes (Basel) 8(5). https://doi.org/10.3390/genes8050146 PubMed PMID: 28534863; PubMed Central PMCID: PMCPMC5448020
Hoenig JM, Heisey DM (2001) The abuse of power: the pervasive fallacy of power calculations for data analysis. Am Stat 55(1):19–24. https://doi.org/10.1198/000313001300339897 PubMed PMID: WOS:000166827400005
Jacobsen M, Repsilber D, Kleinsteuber K, Gutschmidt A, Schommer-Leitner S, Black G et al (2011) Suppressor of cytokine signaling-3 is affected in T-cells from tuberculosis TB patients. Clin Microbiol Infect 17(9):1323–1331. https://doi.org/10.1111/j.1469-0691.2010.03326.x PubMed PMID: 20673263
Cabrera SM, Rigby MR, Mirmira RG (2012) Targeting regulatory T cells in the treatment of type 1 diabetes mellitus. Curr Mol Med 12(10):1261–1272 PubMed PMID: 22709273; PubMed Central PMCID: PMCPMC3709459
Zhang X, Ing S, Fraser A, Chen M, Khan O, Zakem J et al (2013) Follicular helper T cells: new insights into mechanisms of autoimmune diseases. Ochsner J 13(1):131–139 PubMed PMID: 23531878; PubMed Central PMCID: PMCPMC3603176
Gupta S, Cerosaletti K, Long SA (2014) Renegade homeostatic cytokine responses in T1D: drivers of regulatory/effector T cell imbalance. Clin Immunol 151(2):146–154. https://doi.org/10.1016/j.clim.2014.02.007 Epub 2014/03/01. PubMed PMID: 24576418
Delconte RB, Kolesnik TB, Dagley LF, Rautela J, Shi W, Putz EM et al (2016) CIS is a potent checkpoint in NK cell-mediated tumor immunity. Nat Immunol 17(7):816–824. https://doi.org/10.1038/ni.3470 PubMed PMID: 27213690
